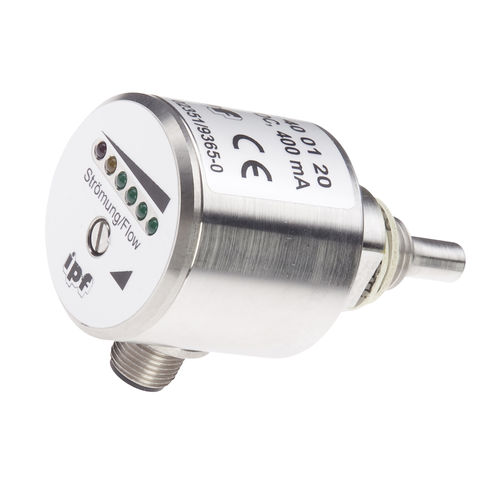

Water flow meter SS400120

for oilstainless steelDC

sensor flow, Water, Calorimetric, Ø40mm 73long, G1/4 inch, 24V DC, PNP NO (NO), Plug-in connection M12 4pin, V4A, Pressure resistance 100bar, Manual adjustment including 1x Screwdriver Flow sensors - Sensors for water The function of the flow sensor is based on the calorimetric principle. The probe is heated up from the inside a few degrees Celsius in relation to the flow medium, in which it protrudes. When the medium flows, the heat generated in the probe is dissipated through the medium. The temperature within the sensor is measured and compared with the likewise measured medium temperature. From the obtained temperature difference the flow state of each medium can be derived. These sensors are applied in areas such as monitoring of cooling systems, ventilation systems, pump dry running by checking the presence of liquid or gas flows. Electrical features Adjustable respondlng value for flow for llqulds O.Ol - 3m/s Rated swltchlng current 400mA Number of pins 4 Voltage drop 2V Type of electrical connection Plug-in connection M12 Settlng procédure Manuel cdjustment Measuring prlndple of flow Calorimetric Mechanical features Measuring range of flow veloclty wlth water 0.01 - 1.5m/s Sensor dlameter iOmm Length 73mm Design Cylinder plein Degree of protection (IP) of measuring head IP67 Senslng element materlal Stainless Steel 1.4571 Betrlebsspannung (DC) 24V Readlness delay 15ms No-load current 70mA Resldual rlpple 20% Type of swltchlng functlon Normal fyosen contact (NO) Type of swltchlng output PNP Short-circuit protection yes Reverse polarlty protection yes
