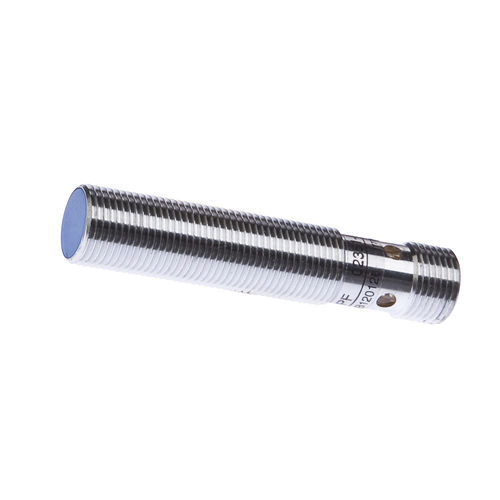

Inductive proximity switch IB120126

mechanicalflatM12

sensor inductive, M12x1 60long, Quasi-flat, Sn: 6, 10-30V DC, PNP NO, Connector M12 3pin, IP67, Brass Chrome-plated including 2x Nut, 2x Toothed washer Inductive sensors - Increased switching distance Inductive proximity switches are contact-free sensors. They detect all conductive metals, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material and its dimensions. The vibration-resistant sensors can be approached laterally or frontally. Inductive proximity switches are used for presence detection (e.g. goods carriers), positioning (e.g. dampers), counting (e.g. nuts /bolts), speed detection (e.g. for cog wheels), on conveyor systems (e.g. hose feedings) or distance measurements (e.g. press-in checking) of metallic objects. Electrical features Norm measuring plate 18x18x1 Cascodable rvo Type of electrical connection Connector M12 Voltage drop 2V Number of pins 3 No-load current 10mA Correction factor (St37) 1 Correction factor (copper) 0.25 Hystérésis 10% Reverse polarlty protection yes Mechanical features Thread size, metrlc 12 Design Cylinder. screw-thread Pressure-proof no Mechanical mountlng condition for sensor Quasi-flat Active area materlal of sensor PBTP Relative repeat occuracy 5% Short-circutt protection yes Type of swltchlng output PNP Type of swltchlng functlon Normal lyosen contact Swltchlng frequency SOOHz Betrlebsspannung (DC) 10 - 30V Correction factor (stalnl. Steel) 0.7 Correction factor (brass) 0.4 Correction factor (aluminum) 0.3
