Capacitive proximity sensor KB120120
mechanicalcylindricalM12

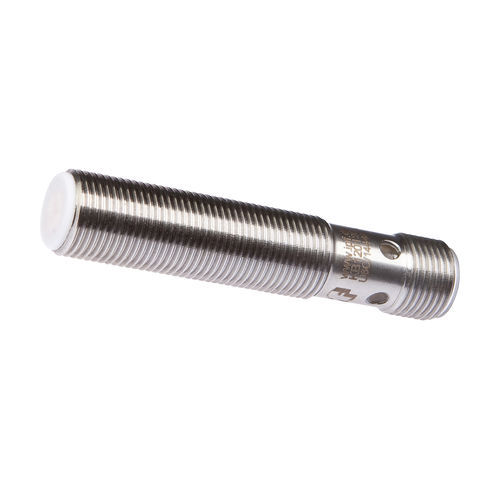

Capacitive proximity sensor - KB120120 - ipf electronic gmbh - mechanical / cylindrical / M12
Capacitive proximity sensor - KB120120 - ipf electronic gmbh - mechanical / cylindrical / M12
Add to favorites
Compare this product


Characteristics

Technology
capacitive, mechanical
Shape
cylindrical
Diameter
M12
Output signal
with switching function, PNP, digital
Supply voltage
DC
Mounting
flush
Material
plastic, PVC
Protection level
vibration-resistant, IP67
Applications
for welding, for hygienic applications, for medical applications
Other characteristics
with LED light, 3-wire
Length

60 mm
(2.36 in)

Width

12 mm
(0.47 in)

Measuring range

Min.: 0 mm
(0 in)

Max.: 6 mm
(0.24 in)

Process temperature

Min.: -25 °C
(-13 °F)

Max.: 70 °C
(158 °F)

Description

sensor capacitive, Connector M12 3pin, IP67, V2A, LED, Manual adjustment including 2x Nut, 1x Screwdriver Description Capacitive sensors - Norm switching distance Capacitive proximity switches are contact-free sensors. They detect metallic and non-metallic objects, regardless of whether they move or not. The achievable sensing range of the devices depends on the object material, its dimensions and the response sensitivity, which is set via a potentiometer. The vibration-resistant sensors can be approached laterally or frontally. Capacitive proximity switches are used for presence detection (e.g. sealing detection), positioning (e.g. PET bottles), counting (e.g. plastic caps), level detection (e.g. lubricant) or distance measurements (e.g. thickness measurement) of solid and liquid materials. Technical data Electrical features Short-circuit protection yes Settlng procédure Manual cdjustment Type of electrical connection Voltage drop 2V Betriebsspannung (DC) 10 - 35V Correction factor (PVC) 0.5 Correction factor (wood) 0.6 Hystérésis 15% Reverse polarity protection yes Switching frequency 500Hz Cascodable rvo Type of switching output PNP Type of switching functlon Normal lyooen contc-ct Number of pins 3 No-load current 15mA Correction factor (oll) 0.5 Correction factor (glass) 0.6 Rated switching current 250mA Mechanical features Thread slze, metrlc 12 Pressure-proof rvo Degree of protection (IP) IP67
