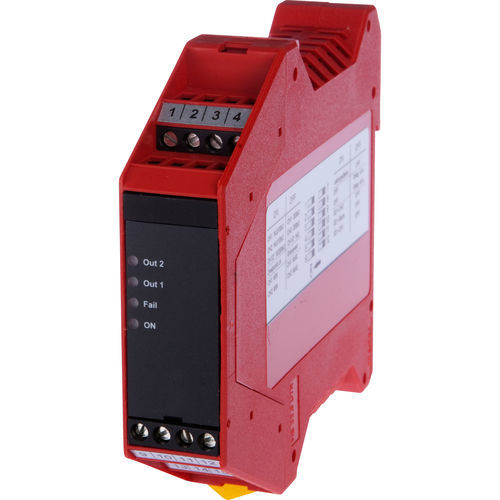

Signal amplifier FV565900

powervoltagemeasuring

amplifier filling level, Conductive, 23x114x99mm, 2 Channels,Clamp, IP20, Polyamide, With LED display Description Filling level sensors - Switching amplifiers Filling level and level sensors operate according to different measuring principles. The selection of the sensor depends on the medium to be detected and the ambient conditions. The material flow in a vibratory bowl can be excellently queried with inductive filling level sensors whose pendulum is moved by the material in the pot. The detection of liquid or solid media is, for instance, possible with capacitive filling level sensor technology. These work according to the principle of the condensator, the medium changes the dielectricity between two electrodes. The resulting change is converted into a digital output signal. A further alternative for the detection of filling levels of conductive media is provided by conductive filling level relays. The resistance between reference and measuring electrode is determined. If a set threshold is exceeded, a relay output switches. Technical data Electrical features Number of channels 2 Rated switching current 10.000mA Switching capacity 2.500VA Type of voltage supply Active Galvanic séparation between output to output yes Malfunction message output no Mechanical features Ambient temperature -40 - 70°C Height 22,6mm Design Cubold Mounting method DIN rail Housing material Polyamide Otherfeatures Output circuit, relay change-over contac 2 Power consumption 10 VA Switching voltage 250V Type of electrical connection Clamps Conductive filling level amplifiers yes
