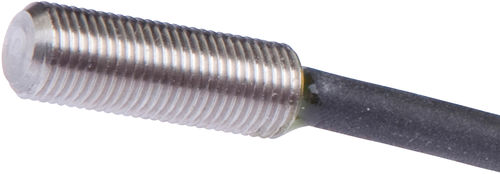

Magnetic proximity switch MC050176

mechanicalcylindricalM8

sensor magnetic, all-steel, M5x0.5 14long, Sn: 40mm, 8-30V DC, 1x PNP NO, Cable connector M8 3pin 0.3m PUR (Polyurethane), IP67, Stainless steel 1.4305, LED, 2.8mT including 2x Nut Magnetic sensors - Proximity switches Magnetic proximity switches are contact-free sensors. They detect magnetic objects and - or magnets, regardless of whether they move or not. Since magnetic fields penetrate all non-magnetizable materials, the sensors can detect magnets through walls made of nonferrous heavy metal, stainless steel, aluminum, plastic, wood or through excessive sailing, for instance. The achievable sensing range of the devices depends on the strength of the affecting magnetic field. Magnetic sensors are used for positioning (e.g. position checks on hoisting gear), speed checks (e.g. on conveyor belts or transmission cog wheels through the aluminum housings) or for position detection (e.g. of goods carriers). Electrical features Number of switching outputs 1 Hystérésis 6mm Magnetic sensitivity 2,8mT Switching frequency 1.000Hz Type of switching f unction Normally open contact Type of switching output PNP Cross/short circuit identification possible no Mechanical features Thread length 14,5mm Thread pitch 0,5mm Degree of protection (IP) IP67 Material of cable sheath PUR (Polyurethane) Betriebsspannung (DC) 8-30V Rated switching current 150mA No-load current 20 mA Number of pins 3 Voltage drop 2V Type of electrical connection Cable connector M8 Short-circuit protection yes Reverse polarity protection yes Sensor diameter 5mm
