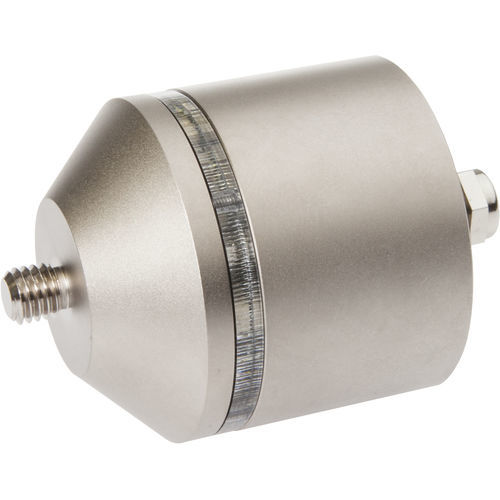

Resistance vibration sensor WF50E104

mechanicalcontactfor machine monitoring

monitor frequency, Vibration sensor, Ø50mm 52high, 5-30V DC, -40-80°C, Relay contact Change-over contact (NO/NC), Clamp, IP67, Aluminum, Adjustable Monitors - Vibration The monitoring of rotation speed or rotating movements is necessary in many applications to ensure the proper operation of the plant. Our rotation- and zero speed monitors operate according to different operating principles: 1. Monitoring of pulses of a transducer via a current transfomer, 2.Frequency measurement of the phase current Our devices feature, depending on the type, a wide variety of functions. For a further evaluation in a higher-level control, the results are i.e. outputted as easy relay contact (over-/ underspeed) or as analog output signal resolved to the set rotation speed range. Electrical features Betriebsspannung (DC) 5 - 30V No-load current 100mA Switching voltage 60V Type of switching function Change-over contact (NO/NC) Type of switching output Relay contact Signal type Vibration sensor Rated switching current 500mA Max. switching capacity 30W Response sensitivity Adjustable Type of electrical connection Clamp Setting procedure Parameterization Mechanical features Ambient temperature -40 - 80°C Height 52mm Design Cylinder plain Color Other Material Aluminum Diameter 50mm Vibration resistance, acceleration 1.000g Mounting type M8 threaded coupling Degree of protection (IP) IP67 Housing material Aluminum Other features Ausführung Vibration monitor
