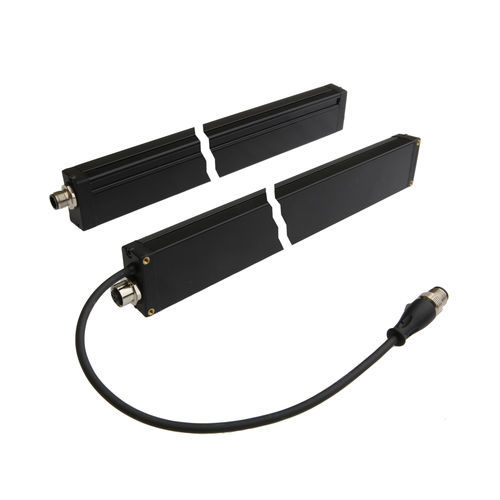

Safety light curtain OY410020

multibeamthrough-beamIP65

light curtain, 260x20x40mm, field height 232, resolution 6mm, Sn: 0.3-4m, 22-26V DC, 0-10V/4-20mA, Cable with connector 4pin 0.3m, IP65, Aluminum+PMMA Optical sensors - Light curtains The multi-function light barriers are through-beam sensors where multiple beams are integrated. In case of interruption of only one beam, the switching output of the receiver changes its state. The devices are used where standard through-beam sensors with only one beam are not sufficient. There are devices with beam spacing of 20, 40, 60 or 120mm and different heights available. An integrated fuzzy logic controls the transmitting power automatically. Electrical features Betriebsspannung (DC) 21.6 - 26.4V Override possible no Short-circuit protection yes Type of electrical connection Cable with connector Reaction time 4ms Number of pins, transmitter 4 Number of pins 4 No-load current, receiver 100mA Reverse polarity protection yes Suppression possible no With muting function no Cascadable no Type of analog output 0 V ... 10 V / 4 mA ... 20 mA Messbereich 300 - 4,000mm Number of pins, receiver 4 No-load current, transmitter 100mA Resolution 6mm Mechanical features Ambient temperature -5 - 50°C Sensor width 40mm Cable length 0,3m Protected field height 232mm Cover material Plastic Housing material Aluminum Number of cores 4 Sensor height 260mm Sensor length 20,5mm Degree of protection (IP) IP65 Material of optical surface PMMA Optical features Resolution of the light curtain 6mm Other features Explosion safety category for gas None Scope of delivery Transmitter and receiver Explosion safety category for dust None
