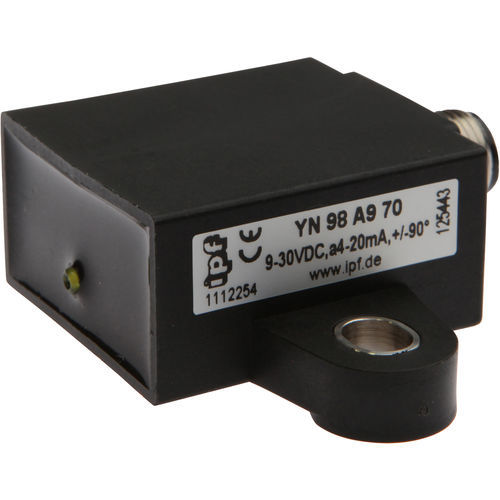

1-axis inclination sensor YN98A970

digitalanalogmechanical

sensor inclination, 75x53x22mm, -90-90°, 9-30V DC, -40-85°C, 4-20mA, Connector M12, PA 6.6 (synthetic) Inclination sensors - Inclination sensors A rotary encoder is a device that converts a rotary motion into a digital output signal, which can be processed on a subsequent evaluation electronics. All of our encoders operate according to the principle of optical scanning. Inside the device there is a pulse disc on which is – depending on the encoder - a unique (absolute) or repetitive (incremental) line graduation, which is scanned by an optical system. The turning of the encoder shaft causes rotation of the pulse disc, which results in a corresponding sampling signal of the optical system. This is finally implemented by an integrated electronics in encoder-specific output signals (e.g. multi-turn, RS422 etc.). For professional installation in many applications, shaft couplings or resilient bases for mounting brackets or flanges are used. In addition, the encoder shaft can be equipped with measuring wheels or pinions in various designs and sizes.Typical applications include the angle measurement on bending machines, length measuring of belt systems or speed measurement on winding systems. Electrical features Betriebsspannung (DC) 9 - 30V Number of pins 4 Type of electrical connection Connector M12 Programmable no Unterstützte Kommunikationsschnittstelle Ohne No-load current 35mA Type of analog output 4 mA ... 20 mA Short-circuit protection no Reverse polarity protection no Auswertung Z-Achse Mechanical features Inclination angle -90 - 90° Sensor width 22,5mm Sensor length 52,8mm Cable infeed unten
