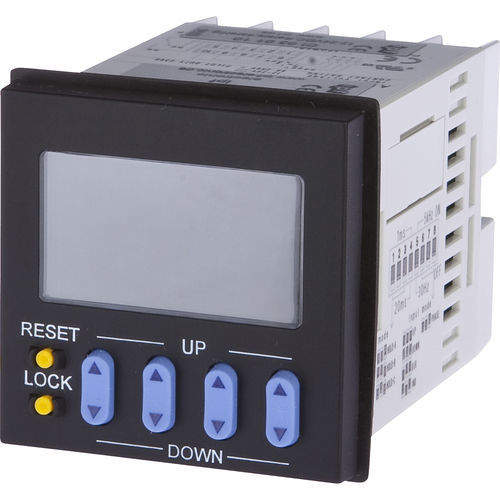

Pulse counter CI030110

timescrewbatch

counter pulse, 48x72x48mm, Display LED, 4 decades, 5kHz, 1x preset, 12-24V DC, 1x Relay contact Change-over contact (NO/NC), Screw connection 10pin, IP66, Plastic, Difference (up, down), With reset function, Display range -999-9999 Counters - Pulse counter In industrial applications, counting, adding / subtracting of pulses, measuring paths or detecting times are common task areas. However, the use of a PLC is not worthwhile evaluating one or two sensors only. In this case, the multi-function encounters of ipf electronic are a good alternative. Various evaluation variants, amongst others frequency meters, sum counters, time relays, tachometers or wear / maintenance counters enable the use in a variety of applications. The batch counter or total sums function also make more complex tasks possible. The integrated front keypad can conveniently be used to program a pre-selection value or the signal evaluation mode for the operation of a linear measurement system or a rotary encoder. Electrical features Display range -999 - 9,999 Type of electrical connection Screw connection Display LED Switching voltage 250V Rated switching current 5.000mA Number of switching outputs 1 Number of decades 4 Betriebsspannung (DC) 12 - 24V Type of switching output Relay contact Power consumption 3VA Type of switching function Change-over contact (NO/NC) Counting frequency 5kHz Number of pins 10 Timed output 1s Number of presets to be set 1 Response time 0ms 1. output voltage at AC 250V Mechanical features Ambient temperature -10 - 55°C Installation depth 67,5mm Length 72mm Degree of protection (IP) IP66 Width 48mm Height 48mm
