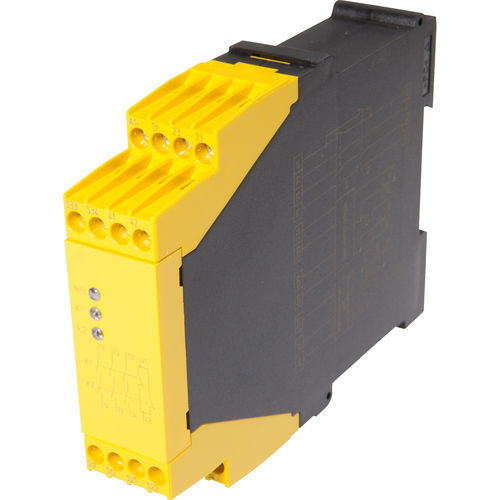

Safety protection relay AO000299

voltagelevelDC

accessories optical, safety relay, 90x118x22mm, 1x NC, 3x NO, Dual channel, Screw connection, Plastic, safety 3x no, 1x nc, terminals Electrical features Betriebsspannung (DC) 24V Number of outputs, safety-related, undelayed, with contact 3 Number of normally open contacts 3 No-load current Decay time 20ms Evaluation of inputs Dual channel With start input yes Number of outputs, signaling function, undelayed, with contact 1 Number of normally closed contacts 1 Rated switching current 4.000mA Switching voltage 250V Type of electrical connection Screw connection With muting function no Voltage type for actuation DC Mechanical features Ambient temperature -15 - 55°C Height 90mm Mounting method DIN rail (top hat rail) 35 mm Width 22,5mm Length 118mm Housing material Plastic Other features SIL in acc. with IEC 61508 3 Category in acc. with EN 954-1 4 Ausführung Expansion device Suitable for cycle operation no Performance level in acc. with EN ISO 13849-1 Level e Print data
