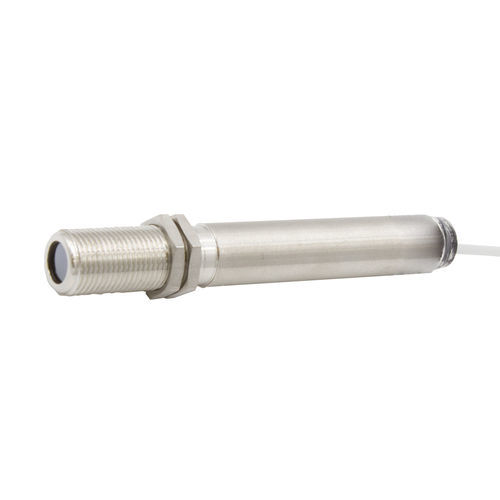

Infrared temperature sensor OI12C758threadedanalog15:1
Add to favorites
Compare this product
Characteristics
- Technology
- infrared
- Mounting
- threaded
- Output
- analog
- Optical resolution
- 15:1
- Other characteristics
- programmable
- Temperature
Min.: -40 °C
(-40 °F)Max.: 1,030 °C
(1,886 °F)
Description
sensor optical, infrared, M12x1, -40-1030°C, 5-30V DC, PNP NO (NO), 0V … 5V / 0V … 10V, Clamp 1m, IP63, Cable length of measuring head 1m
including 2x Nut
5-30V DC, d50mA, a0-10V, opt. 15:1/1m cable
Electrical features
No-load current
10mA
Type of switching function
Normally open contact (NO)
Type of electrical connection
Clamp
Data logging possible
yes
Infrared measurement
yes
Programmable via software
yes
Betriebsspannung (DC)
5 - 30V
Display
None
Type of analog output
0V … 5V / 0V … 10V
Type of switching output
PNP
Setting procedure
Manual adjustment
Interface possible
yes
Mechanical features
Ambient temperature
80°C
Thread pitch
1mm
Cable length of measuring head
1m
Thread size, metric
12
Cable length
1m
Degree of protection (IP)
IP63
