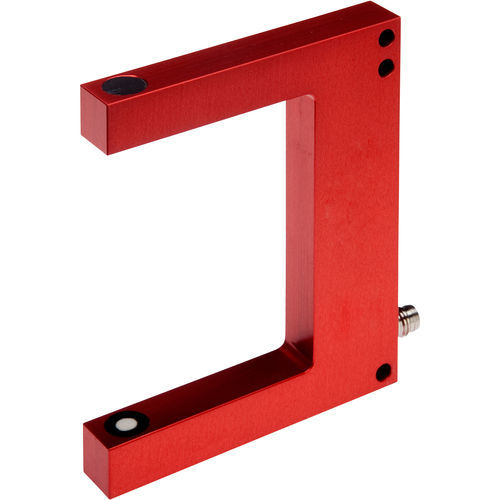

Through-beam ultrasonic sensor UG800170

sensor ultrasonic, Fork, 100x13x80mm, Fork width 74mm, 18-30V DC, PNP NO (NO), Connector M8, IP67, Aluminum, With LED display Ultrasonic sensors - Through-beam sensor, fork-shaped Ultrasonic sensors are non-contact and wear-free position switches which can also be used under rough environmental conditions. A key advantage of these devices lies in the fact that the material and the surface characteristics of the objects to be detected can be almost anything. Solids, liquids, grainy materials and powdery materials can be identified without the shape or the color of the object having any influence to the measured result. In addition, the ability to detect transparent materials such as films and fluids is of particular importance. The shape and color of the objects do not influence the result of the detection. The capability to detect transparent films or liquids is also of special importance. Ultrasonic sensors are used for distance measurement (e.g. detection of diameters, loop control), for fill level detection (e.g. silo detection), for positioning and presence detection (e.g. glass pane positioning, film tear check, glass bottle detection) Electrical features Betriebsspannung (DC) 18 - 30V Response/decay time 1ms Rated switching current 500mA Switching frequency 150Hz Type of switching function Normally open contact (NO) Type of switching output PNP Protection class III Messbereich 74mm Response time 1ms No-load current 40mA Carrier frequency 300kHz Type of electrical connection Connector M8 Sound outlet Lateral Mechanical features Ambient temperature -15 - 60°C Fork width 74mm Sensor length 13mm
