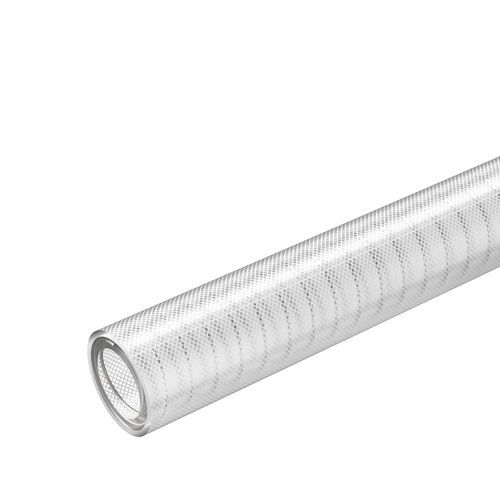

Foodstuff hose PHARMASTEEL PRESS
TPEwith polyester reinforcementtransfer

Foodstuff hose - PHARMASTEEL PRESS - IPL SPA - TPE / with polyester reinforcement / transfer
Foodstuff hose - PHARMASTEEL PRESS - IPL SPA - TPE / with polyester reinforcement / transfer
Foodstuff hose - PHARMASTEEL PRESS - IPL SPA - TPE / with polyester reinforcement / transfer - image - 2
Foodstuff hose - PHARMASTEEL PRESS - IPL SPA - TPE / with polyester reinforcement / transfer - image - 3
Add to favorites
Compare this product


Characteristics

Use
foodstuff
Material
TPE, with polyester reinforcement
Applications
transfer, cleaning, for pharmaceutical applications, FDA
Other characteristics
abrasion-resistant, flexible, chemical-resistant, smooth, weather-resistant, lightweight, oil-resistant, translucent, hydrolysis-resistant, extruded, reinforced, stainless steel spiral
Inner diameter

Min.: 13 mm
(0.512 in)

Max.: 102 mm
(4.016 in)

Outer diameter

Min.: 23.5 mm
(0.925 in)

Max.: 118 mm
(4.646 in)

Pressure

Min.: 1 bar
(14.504 psi)

Max.: 17 bar
(246.564 psi)

Temperature

Min.: -30 °C
(-22 °F)

Max.: 100 °C
(212 °F)

Delivered length

20 m, 30 m, 60 m
(65'07" , 98'05" , 196'10" )

Description

COLOR: translucent with stainless steel spiral and polyester reinforcement to facilitate the control of the transported substances. FEATURES Features: flexible, lightweight hose made from TPE-S hygienic rubber reinforced by AISI 302 stainless steel spiral and high tenacity polyester plies. Inside and outside completely smooth to enhance flow properties and allow easy cleaning and sterilization processes. Tube features: the extruded, low porosity TPE-S tube reduces permeation problems. Highly neutral in taste and odor, it preserves the organoleptic properties of the medium. Good chemical resistance to acids and alkaline solutions, good abrasion resistance and impermeability. Cover features: excellent resistance to ozone, ageing and weather. Standards: Food grade according to the EU Regulation 10/2011(classes A, B, C, D1, D2 and dry food) FDA regulations (Title 21 CFR 177.2600, classes D and E) Compliant with the pharmaceutical standards USP CLASS VI. Resistant to hydrolysis and proliferation of bacteria. Curing-free material: Pharmasteel Press does not need any vulcanization process, therefore it prevents the risk of leaching of residues into the end product (peroxide or platinum volatile rests) and allows to save energy sources and limit Co2 emissions.
