Food-grade hose PLUTONE A SE
alcoholbeveragePVC

Food-grade hose - PLUTONE A SE - IPL SPA - alcohol / beverage / PVC
Food-grade hose - PLUTONE A SE - IPL SPA - alcohol / beverage / PVC
Food-grade hose - PLUTONE A SE - IPL SPA - alcohol / beverage / PVC - image - 2
Food-grade hose - PLUTONE A SE - IPL SPA - alcohol / beverage / PVC - image - 3
Add to favorites
Compare this product

Go to the IPL SPA website for more information

Characteristics

Use
alcohol, beverage
Material
PVC
Applications
suction, transfer, food, food-grade, for the food industry
Other characteristics
flexible, chemical-resistant, weather-resistant, with smooth inner surface, translucent, reinforced, spiral wire
Inner diameter

Max.: 151 mm
(5.945 in)

Min.: 6 mm
(0.236 in)

Outer diameter

Max.: 169.6 mm
(6.677 in)

Min.: 12.2 mm
(0.48 in)

Pressure

Max.: 4 bar
(58.015 psi)

Min.: 0.5 bar
(7.252 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: -10 °C
(14 °F)

Delivered length

20 m, 30 m, 60 m
(65'07" , 98'05" , 196'10" )

Description

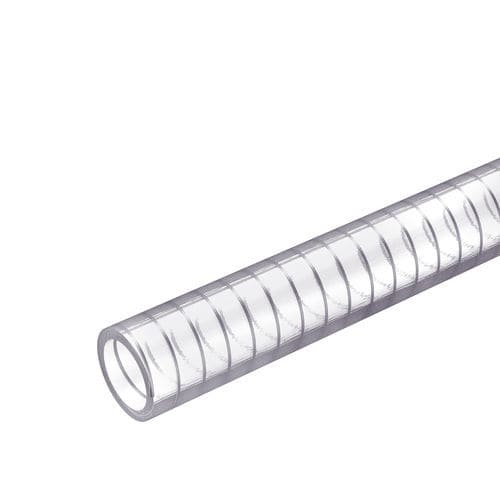

Color: Transparent with steel spiral Features: Super flexible hose produced with PVC and reinforced with steel spiral. Smooth inside to enhance the flow properties and to allow an easy cleaning after use. Clear wall for an easy detection of the media transferred. Resistant to several chemicals and to weather conditions. It can be conductive (R<102 Ohm/m) by grounding the spiral. Suitable to deliver foodstuffs according to Reg. EU 10/2011 (classes A,B, C). Application: ideal solution for suction and delivery of food liquids, beverages, fruit juices, wine and liquors with up to 20% alcohol concentration. It is often used for filling machines and dispensers.
