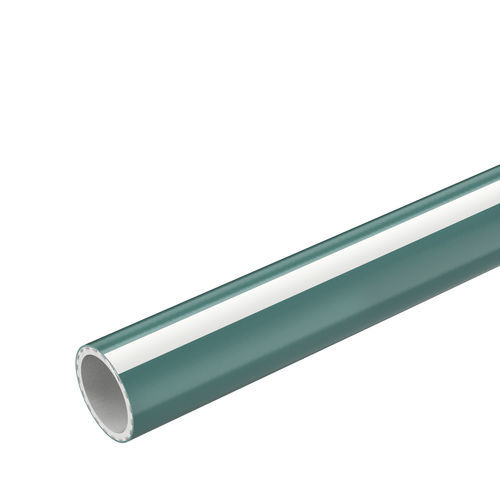

Chemical product hose PLUTONE PKTPVwith polyester reinforcementsuction
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products
- Material
- TPV, with polyester reinforcement
- Applications
- suction, for the chemical industry, for petrochemical applications
- Other characteristics
- smooth, weather-resistant, rugged, reinforced, fabric-braided, spiral wire
- Inner diameter
Max.: 102 mm
(4.016 in)Min.: 14 mm
(0.551 in)- Outer diameter
Max.: 118 mm
(4.646 in)Min.: 22 mm
(0.866 in)- Pressure
Max.: 14 bar
(203.053 psi)Min.: 7 bar
(101.526 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -30 °C
(-22 °F)- Delivered length
20 m, 30 m, 60 m
(65'07" , 98'05" , 196'10" )
Description
COLOR:
smooth white liner and green cover with a violet longitudinal identification stripe.
FEATURES
White/beige TPV inline, reinforced with steel spiral and polyester yarn.
TPV cover with longitudinal violet stripe. The cover is completely smooth to reduce friction and dirt collection while using it
Robust hose dedicated to the chemical industry, suitable for suction and delivery. Good resistance to aging, weather conditions and ozone.
APPLICATION:
for suction and delivery of acids, alcali and chemicals of various kind.
