Chemical product hose PLUTONE POfor crude oilfor dieselfor mineral oil
Add to favorites
Compare this product
Characteristics
- Use
- for chemical products, for crude oil, for diesel, for mineral oil
- Material
- NBR, PVC, with polyester reinforcement
- Applications
- suction, transfer, conveying, for petrochemical applications, low-temperature, for tanker trucks, for hydraulic systems, refuelling, for lubrication
- Other characteristics
- flexible, abrasion-resistant, chemical-resistant, smooth, weather-resistant, oil-resistant, electrically-conductive, reinforced, with copper ground wire, wire-reinforced, spiral wire
- Inner diameter
Min.: 20 mm
(0.787 in)Max.: 102 mm
(4.016 in)- Outer diameter
Min.: 29 mm
(1.142 in)Max.: 118 mm
(4.646 in)- Pressure
Min.: 4 bar
(58.015 psi)Max.: 14 bar
(203.053 psi)- Temperature
Min.: -30 °C
(-22 °F)Max.: 80 °C
(176 °F)- Delivered length
20 m, 30 m, 60 m
(65'07" , 98'05" , 196'10" )
Description

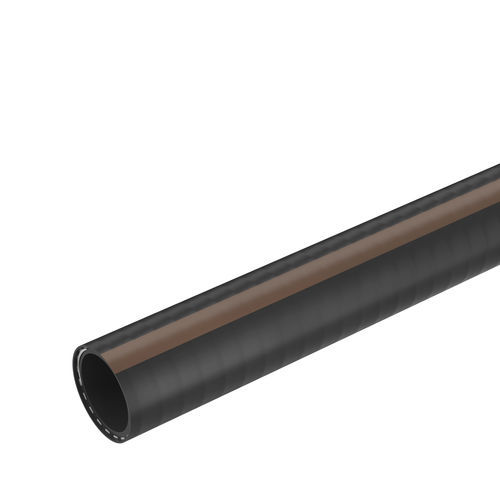

COLOR:
inside and outside black with a brown stripe.
FEATURES
the inner layer is a special blend of PVC/NBR, the structure is reinforced both by a harmonic steel wire and polyestern yarn. The copper wire between the two layers makes the hose conductive. Very flexible, resistant to abrasion, ageing, atmospheric agents and ozone.
APPLICATION:
for suction and delivery of mineral oils, lubricants, crude fuel (naphta, diesel oil) and as a return line in hydraulic systems.
