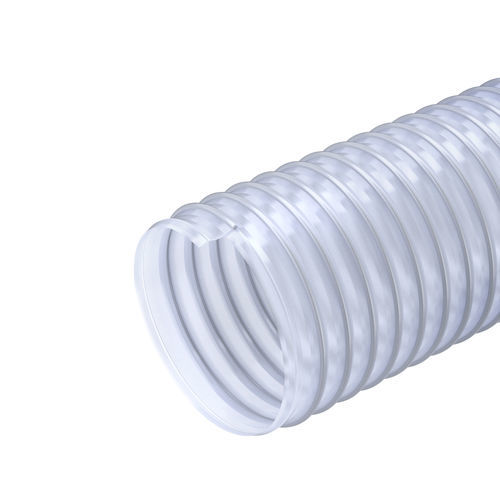

Food-grade hose VULCANO 09 ET
foodstufffor powdersfor dry bulk materials

Food-grade hose - VULCANO 09 ET - IPL SPA - foodstuff / for powders / for dry bulk materials
Food-grade hose - VULCANO 09 ET - IPL SPA - foodstuff / for powders / for dry bulk materials
Food-grade hose - VULCANO 09 ET - IPL SPA - foodstuff / for powders / for dry bulk materials - image - 2
Food-grade hose - VULCANO 09 ET - IPL SPA - foodstuff / for powders / for dry bulk materials - image - 3
Add to favorites
Compare this product


Characteristics

Use
foodstuff, for powders, for dry bulk materials, for abrasive products, for bulk materials
Material
TPU
Applications
suction, for pneumatic conveying, transfer, cleaning, for vacuum, heavy-duty, for suction units, for the pharmaceutical industry, food-grade, for the food industry
Other characteristics
UV-resistant, abrasion-resistant, spiral wire, chemical-resistant, weather-resistant, with smooth inner surface, translucent, microbe-resistant, hydrolysis-resistant, vacuum, polyurethane-coated, reinforced
Inner diameter

Max.: 500 mm
(19.685 in)

Min.: 20 mm
(0.787 in)

Temperature

Max.: 90 °C
(194 °F)

Min.: -40 °C
(-40 °F)

Delivered length

6 m, 10 m, 15 m, 20 m
(19'08" , 32'09" , 49'02" , 65'07" )

Description

COLOR: Translucent with high adhesion TPU coated steel spiral grey FEATURES Ether based food grade polyurethane hose reinforced with PU coated high adhesion steel wire. Smooth inside to ensure optimization of flow properties. Constant Wall thickness of 0,9 mm for the whole diameter range. Resistant to microbes and to hydrolysis. Excellent against ozone and weather. Suitable to deliver dry food stuffs according to the EU Regulation 10/2011 (for further details see the Information Sheet) and with FDA, title 21 CFR 177.2600, classes D, F, E The hose is odourless and doesn’t change the organoleptical properties of the transferred materials, ensures very good bending radius even at low temperatures without reducing the flow capacity. Halogen free, conform to RoHS regulations. It can be made conductive by grounding the spiral. APPLICATION: Food processing and pharma plants and anywhere resistance to microbes is required.
