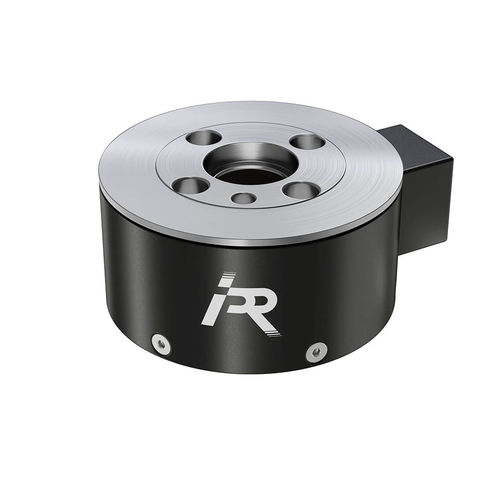

Pancake type load cell F6D seriestension6-axisanalog
Add to favorites
Compare this product
Characteristics
- Type
- tension
- Form
- pancake type
- Number of axes
- 6-axis
- Output signal
- analog, digital
- Other characteristics
- compact, stainless steel, aluminum, USB, torque
- Rated force
Min.: 60 N
Max.: 6,000 N
- Rated load
Min.: 6 kg
(13.23 lb)Max.: 300 kg
(661.39 lb)
Description
Sensor with internal measuring amplifier
The force-torque sensors of the F6Di version are equipped with internal electronics for signal processing. The analog signal is internally amplified, digitized and assigned to the applied loads by means of a calibration matrix.
• 16 bit resolution
• Digital signal transmission
• Data frequency 500 Hz simultaneously on 6 channels
• Fieldbus connection (PROFIBUS, PROFINET, EtherCat, …)
F6De: Sensor with external measuring amplifier
The force-torque sensors version F6De process the analog signals by means of a high-quality external 8-channel amplifier. This enables the coupling to an evaluation system or a robot control.
• 24 bit resolution
• Analog signal transmission
• Data frequency 48 kHz simultaneously on 8 channels
• Communication interfaces: USB, CANopen or EtherCat
