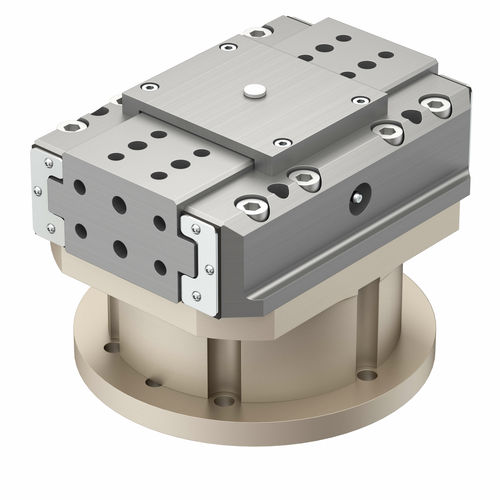

Pneumatic gripper IRP series

parallel2-jawhandling

Robust 2-jaw parallel gripper with steel sliding guide and ISO flange for direct mounting on the robot Features – Extremely robust construction due to steel-on-steel sliding guide – High gripping forces and moments possible – Versions with gripping force maintenance via spring available – ISO flange for adaptation directly on the robot Operating principle The parallel movement of the jaws is generated by an inclined plane in combination with a double-acting pneumatic cylinder. The jaws are guided in hardened and ground flat guides made of tool steel. The guide elements are additionally Duralloy-coated and thus obtain high emergency running properties, very good corrosion resistance, very high wear resistance and high surface load capacity.
