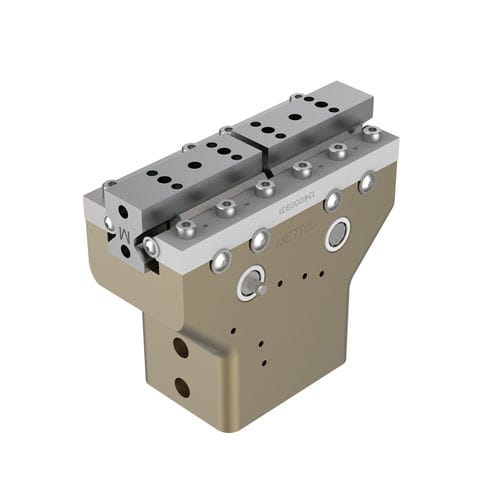

Pneumatic gripper RP seriesparallel2-jawhandling
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- parallel
- Number of jaws
- 2-jaw
- Application
- handling
- Grip strength
Max.: 850 N
Min.: 90 N
- Stroke
Max.: 50.8 mm
(2 in)Min.: 12.7 mm
(0.5 in)
Description
2-jaw parallel gripper with roller guide for precise gripping and high repeatability
Features
– Precise jaw movement and high repeat accuracy due to roller guide
– Large opening stroke with small external dimensions
– Sensitively adjustable gripping force through minimal friction
– Optionally available stroke monitoring to monitor the jaw position
Operating principle
The parallel movement of the jaws is generated by a rack and pinion drive. The jaws are guided by roller bearings.
