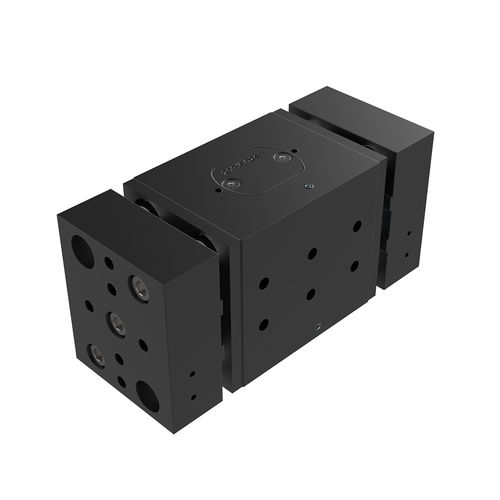

Pneumatic gripper RPW seriesparallel2-jawlarge
Add to favorites
Compare this product
Characteristics
- Operation
- pneumatic
- Type
- parallel
- Number of jaws
- 2-jaw
- Application
- large
- Options
- double-acting, flat
- Grip strength
Max.: 1,550 N
Min.: 155 N
- Stroke
Max.: 114 mm
(4.488 in)Min.: 19 mm
(0.748 in)
Description
All-purpose 2-jaw parallel gripper with large stroke and sealed sliding guide
Features
– Flat construction
– Robust construction with sealed round guides
– Gripper attachment possible from two sides
– Large stroke of up to 114 mm
Operating principle
The parallel movement of the jaws is generated by a gear/rack drive using two double-acting pneumatic cylinders. The jaws are guided by toothed racks and guide rods in combination with the slide guided piston rod.
