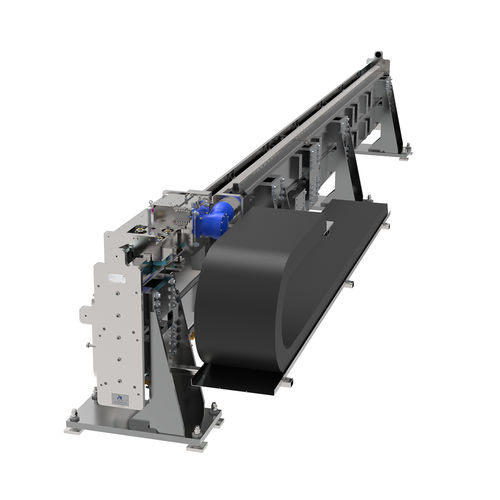

Electric linear axis IP-180-LWAprofilewall-mounted
Add to favorites
Compare this product
Characteristics
- Operation
- electric
- Type
- profile
- Other characteristics
- wall-mounted
- Speed
3 m/s
(9.84 ft/s)- Force
15,000 N, 50,000 N
Description
7th axis wall mounted
with laterally mounted robot
Basic module with a length of 2 m and a travel distance of 1 m
Modular system: Extension in 100 mm steps
Steel double profile with cross ribbing for very high stability
Easy and fast wall mounting
Technical specifications
Profile -
Double profile
Material -
Steel
Max. acceleration -
4 m/s²
Repeatability -
0.2 mm
Robot examples -
ABB IRB 5500, FANUC Paint Mate 200, Yaskawa Motoman EPX2700
