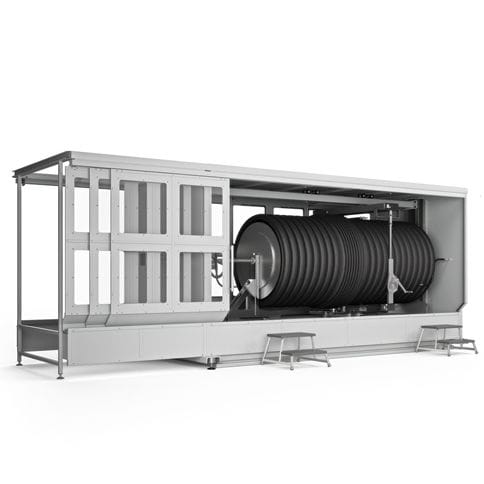

Mechanical leak test bench V1771-0001

for pipe

The IPT combi-tester is the multi-purpose test rig for waste wa­ter pipes. With just a basic unit, the leak-tightness test on pipes with diam­e­ters up to 400 mm at inner pressures from 0.5 bar down to vacuum (optional) can be performed. With further modules such as the shear load unit, or manhole test bench, deflection or squeezing unit, a whole variety of tests can be performed on one test rig. On the front panel of the switch cabinet, the rational disposition of all control, indication and connection components gives you easy overview and comfortable access. Combi-tester for corrugated pipes in accordance with EN 1277: : As a result of the increased requirements for this type of test, IPT has developed the combi-tester to enable pipes with larger diam­e­ters to be tested. The newly-developed test chamber allows leak tests to be carried out on pipes of up to 1200 mm. The modified supply unit provides the supply pressures required. Simple and safe operation: • - Operation via switch on supply unit Lasting efficiency: • - High-quality unit components guarantee high reliability, a long service life and low maintenance costs
