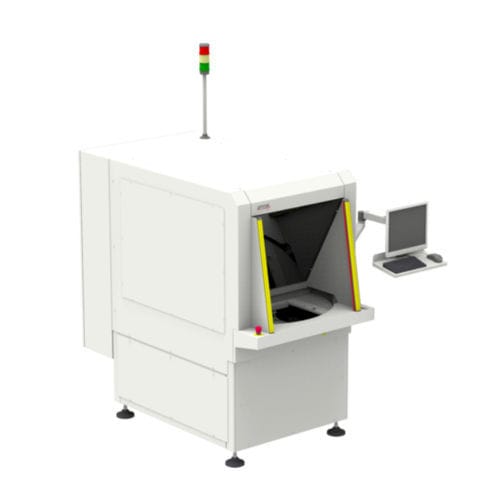

PCB depaneling machine TOPROUTER

The off-Line depaneling system TopRouter is developed for modular structured productions with a high variety of products. This flexible usage is guaranteed through a quick change of product-specific carrier. Routers and/or saw blades are at hand and guarantee an optimal depaneling of the PCB. • High speed, low stress separating process • Top side routing and/or sawing • Linear motor technology • TS1 HMI • Router bit breakage detection and life monitoring • Two position turntable: Unloading/Loading during depaneling process • Ionizer • Automatic Router bit exchange Options • Fiducial recognition • 1D/2D Code Reader • Fixture detection • Routing program generator based on .DXF or gerber data • Traceability software (CamX) • Twin Spindle (Sawing and Routing side by side) • Pass/Fail Indication using beamer
