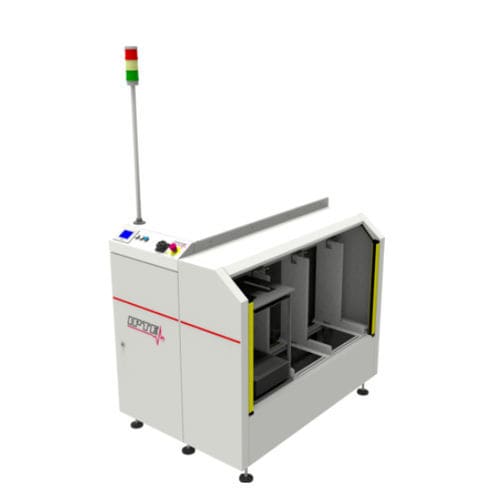

Automatic unloader MLU XP

PCB

The MLU xP Multiple Magazine Line Unoader is designed for unloading PCBs from production lines into up 10 SMD Magazines (CAB, Miki-Plastik, etc). A conveyor, mounted on a shuttle-lift combination, imports a board from the production line. The shuttle then moves to the next free slot in the magazine and pushes the board into the magazine. The shuttle returns back to the production line conveyor and imports a next board. This is repeated until the magazine are loaded completely. • Lean design - optimized footprint • User friendly interface - Color touch screen • Easy configuration • Integrated diagnostic tool • Robust magazine positioning and locking • Suitable for Pass/Fail sorting Options • Other magazine types (Mikiplastic, Nikko) • Electrical Pusher • Puller force controlled • Loaded slot detection
