Handling rack VNA

for heavy loadspalletnarrow-aisle

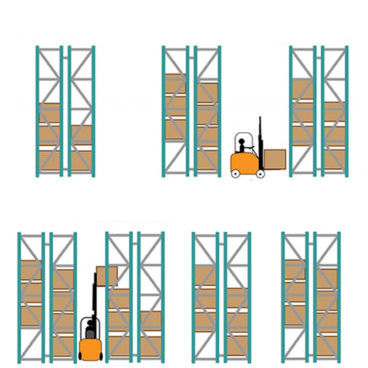

VERY NARROW AISLE (VNA) RACK Your storage needs: You require greater storage density, your orders are complex and varied. Turnaround times are not critical, however you require immediate access to all products. Space in your facility is at a premium, so you’re keen to get the most from what you’ve got. Our racking solution: Very Narrow Aisle (VNA) Rack, as the name suggests, makes optimal use of floor ares and roof height. The racking provides a substantial increase in storage volume, as they operate in even narrower aisles(from 1,500 to 2,000mm), optimising the space and increasing the storage area. Direct access to every pallet is achieved. VNA Rack System is serviced by special forklift trucks.The mast of the fork head rotates either left or right as required. The system can also be served by fork lifts with elevating operator cabins where the operator hand picks. Very flat floors, close tolerance racking, carefully located pallets of uniform size and stock locationg systems are all prerequisites for successful narrow aisle systems. Floor guidance in the aisles is mandatory and the design interface between every aspect of their system is needed. Features: 1 Storage density increased because of very narrow aisles. 2 Direct access to any stored pallet. 2 Floor mounted free roaming trucks are flexible in multi-aisles. 3 High speed trough put with specialised equipment. 4 Controlled materials handling provides safe and damage free environment. 5 Hard wearing and very flat floor desinged for heavy loads are needed. 6 High average locations used 95%, for 100% accessibility, good stock rotation and 50% floor utilistation with high cube available.
