ACCELEROMETER

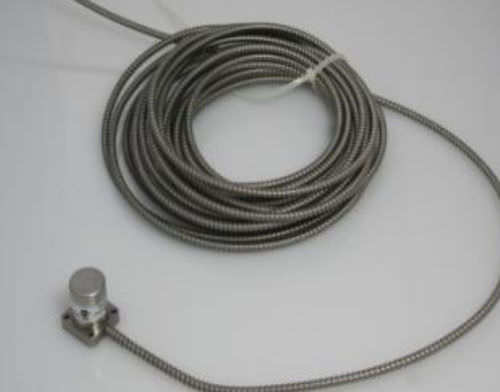

The IRD Model 942 is a solid state seismic accelerometer for permanent mounting on machinery. It is designed to withstand harsh industrial environments, including high temperatures and splashing fluids. The 942’s wide frequency and amplitude ranges accommodate most types of rotating machines. The small size of the 942 permits installation near bearings, and the integral armored cable eliminates problems often experienced with connectors.
The 942 has an internal, low impedance amplifier capable of transmitting a vibration signal accurately over cable up to several thousand feet long, ideal for large installations with centralized signal processing equipment. A DC bias voltage on the output permits remote testing of cable continuity
and proper operation. The 942 can be mounted directly on the machine or to an optional mounting plate which fastens to the machine with a ¼- 28 screw.
GENERAL SPECIFICATIONS
Frequency
Response
5 Hz to 2 kHz ± 10% @ 70°F (21°C)
Sensitivity 100 mV/g ± 10% @ 100Hz
Magnetic Field
Sensitivity
100 µg/Gauss
Output
Impedance
100 Ohms
Dynamic
Range
.001-75 g peak
Resonant
Frequency
22 kHz, mounted, nominal
Transverse
Response
5%, average
Grounding Case isolated from circuit
Power
Requirement
+16 to +26 VDC
1 to 4 mA constant current Diode
Output Bias +10 to +18 VDC
Case Material 300-series stainless steel
Environmental
Protection
Class I, II, III, Division I, Groups A. B,
C, D, E, F, G
Hazardous indoor or outdoor location,
with safety barrier
Temperature Range
-40 to 300° F
-40 to 149° C
