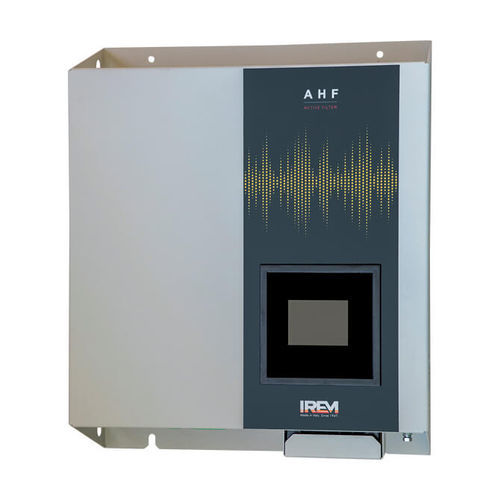

Active electronic filter AHF seriesband-passharmonicthree-phase
Add to favorites
Compare this product
Characteristics
- Bandwidth
- band-pass
- Type
- active
- Other characteristics
- harmonic, three-phase
- Frequency
50 Hz, 60 Hz
- Voltage
208 V, 400 V, 408 V, 600 V
- Primary current
Max.: 150 A
Min.: 50 A
Description
Efficiency - > 97%
Current transformer - 150:5 – 10.000:5
Harmonics filtering range - from the 2nd to the 50th
Reaction time - < 50 μs
Response time - < 5 mS
Communication port - RS485, Ethernet
Communication protocol - Modbus, TCP/IP
Interface - color display HMI LCD 4.3 touch screen
Altitude - 1500m – above this altitude 1% derating each 100m
Operating temperature - -10°C / + 40°C
Protection degree - IP 20
Noisiness - < 56 dB
Color - RAL 7035, light gray
