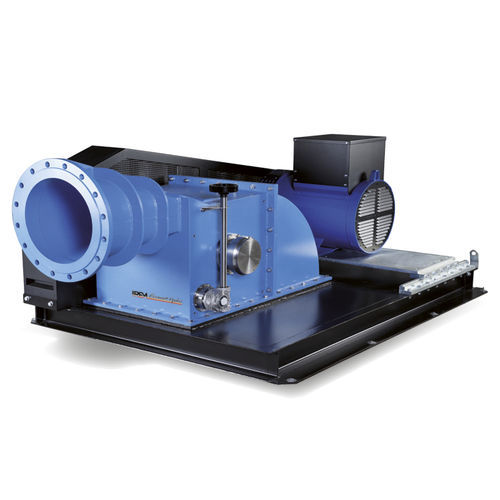

Hydraulic turbine TBS

for power generation

Certifications - 200642CE (Machinery Directive); 201435UE (LVD); 201430UE (EMC) Flow range - 20-1500 l/s Flow regulation - flow regulation system with deflector driven by electric actuator Generator - synchronous, brushless, self-exited, three-phase (possible connection charges monophase) Generator class insulation/temp. rise - H/B Bearings of generator - lifetime lubricated / with grease-gun Temperature sensor Frequency - 50-60 Hz Voltage - 230/400V – 277/480V, three-phase Protection grade - IP23 The mechanical components in contact with water are in stainless steel OPTIONALS FLOW REGULATION: DEFLECTOR OF REGULATION MANUALLY OPERATED PTC TEMPERATURE SENSORS BEARING RUNNER PT100 TEMPERATURE SENSORS IN BEARINGS RUNNER PTC TEMPERATURE SENSORSIN WINDINGS GENERATOR PT100 TEMPERATURE SENSORS IN WINDINGS GENERATOR PT100 TEMPERATURE SENSORS IN BEARINGS GENERATOR VIBRATION SENSOR
