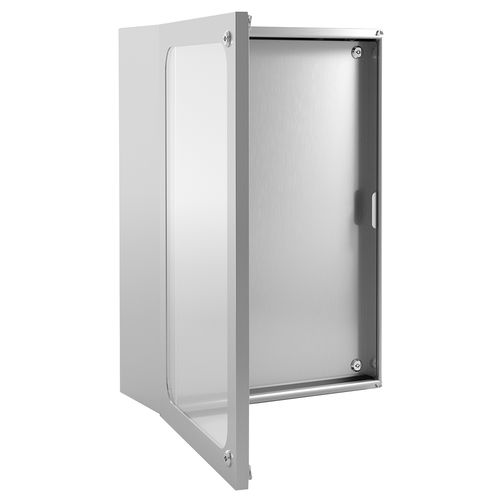

Wall-mount enclosure EKOV
rectangularstainless steelwith transparent door

wall-mount enclosure
wall-mount enclosure
Add to favorites
Compare this product


Characteristics

Construction
wall-mount
Configuration
rectangular
Material
stainless steel
Other characteristics
with transparent door, with inner door
Width

Max.: 1,000 mm
(39.4 in)

Min.: 200 mm
(7.9 in)

Height

Max.: 1,200 mm
(47.2 in)

Min.: 300 mm
(11.8 in)

Depth

Max.: 400 mm
(15.75 in)

Min.: 155 mm
(6.1 in)

Description

Stainless steel type: AISI 304 (Wnr 1.4301) Scotch-brite Thickness: 1,2 mm to 1,5 mm (0.04" to 0.05") according to enclosure dimensions Door: lexan (4 mm – 0.15" thick UV-resistant clear polycarbonate sheet) and stainless steel internal door Door fixing: hinges Door opening: 145° hinges on the left Fixing points: see technical details Back fixing points: M6 bushings Gasket: silicone Mounting plate: included, FeZn 25/10 Mounting plate dimensions: see technical details Locking system: 5 mm (0.20") chromed Zamak lock with double bit insert Components on request: Stainless steel internal mounting plate, stainless steel locks, 3+3 laminated glass (not available UL certified) Customisation possibilities Dimensions: adaptable on request (on 10 mm / 0.39" step) Thicknesses: adaptable on request Material: AISI 316L (Wnr 1.4404) Finishes: SN Coarse brushed - BA Polished (check when placing order)
