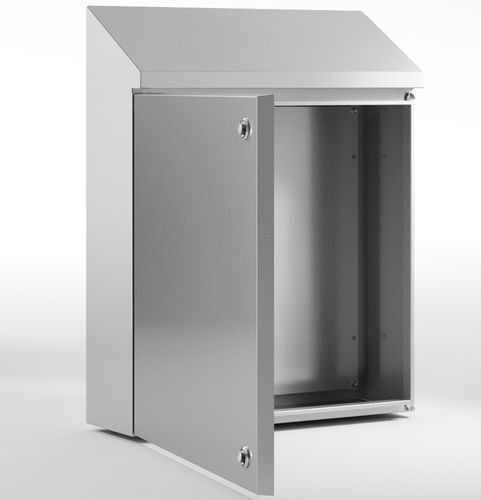

Wall-mount enclosure EKO Hrectangularstainless steel
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- stainless steel
- Width
Min.: 200 mm
(7.9 in)Max.: 800 mm
(31.5 in)- Height
Min.: 300 mm
(11.8 in)Max.: 1,200 mm
(47.2 in)- Depth
Min.: 155 mm
(6.1 in)Max.: 350 mm
(13.78 in)
Description
Stainless steel type: AISI 304 (Wnr 1.4301) Scotch-brite
Thickness: 1.2 to 1.5 mm (0.04" to 0.05") according to enclosure dimensions
Door: solid
Door fixing: hinges
Door opening: 145° hinges on the left
Roof slope: 30° sloping
Fixing points: see technical details
Back fixing points: M10 bushings
Gasket: polyurethane
Mounting plate: included, FeZn 25/10
Mounting plate dimensions: see technical details
Locking system: AISI 316 stainless steel lock
Components on request: Stainless steel internal mounting plate, standard locks in chromed Zamak or stainless steel
Customisation possibilities
Dimensions: adaptable on request (on 10 mm / 0.39" step)
Thicknesses: adaptable on request
Material: AISI 316L (Wnr 1.4404)
Finishes: SN Coarse brushed - BA Polished (check when placing order)
