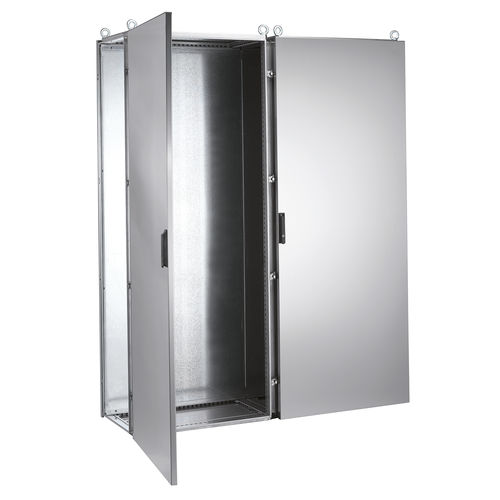

Electric cabinet with post AZstainless steelmodular
Add to favorites
Compare this product
Characteristics
- Mounting
- with post
- Material
- stainless steel
- Other characteristics
- modular
- Width
400 mm, 600 mm, 800 mm, 1,000 mm, 1,200 mm
(15.7 in, 23.6 in, 31.5 in, 39.4 in, 47.2 in)- Height
1,800 mm, 2,000 mm
(70.9 in, 78.7 in)- Depth
411 mm, 511 mm, 611 mm
(16 in, 20 in, 24 in)
Description
Stainless steel type: AISI 304 (Wnr 1.4301) Scotch-brite
Thickness: 1,5 mm (0.06")
Door: solid
Door fixing: hinges
Door opening: 120°
Frame: reinforcement frame for the following widths: 600/800/1000/1200 mm (23.62”/31.50”/39.37”/47.24”)
Back panel: screwed
Side panels: screwed
Top: screwed
Cabinet bottom: plain cable gland plate
Number of hinges: see technical details
Gasket: polyurethane
Mounting plate: included, FeZn 25/10
Mounting plate dimensions: see technical details
Locking system: flush swing handle
Components on request: stainless steel internal mounting plate, plinth with removable inspection plates on all 4 sides, side panels, double cable gland plate
Customisation possibilities
Dimensions: adaptable on request
Thicknesses: adaptable on request
Material: AISI 316L (Wnr 1.4404)
Finishes: SN Rough brushed - BA Bright (check when placing order)
