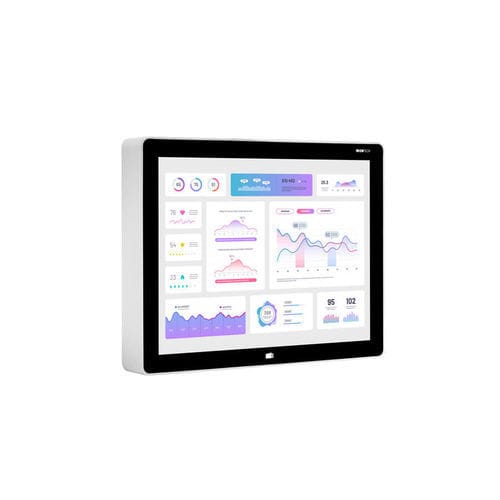

LED backlight panel PC IRTCPC seriesPCAP capacitive touch screen15"21.5"
Add to favorites
Compare this product
Characteristics
- Screen type
- LED backlight, PCAP capacitive touch screen
- Display size
- 15", 21.5", 27", 10.1", 10.4", 32"
- Resolution
- full HD, 1024 x 768, 1280 x 1024, 800 x 600
- Processor
- Intel® Celeron J1900, quad-core, 8th Generation Intel® Core™, 6th generation Intel® Core™, Intel® Core™ i series, Intel® Core™ i3-6100TE, Intel® Core™ i5-6500TE, Intel® Core™ i5-8500
- Operating system
- Linux, Windows
- Construction
- ultra-compact, fanless, aluminum frame
- Mounting
- VESA mounting
- Applications
- industrial, for data acquisition systems, POS, for the pharmaceutical industry, for clean rooms
- Other characteristics
- all-in-one, with external power adapter
- Memory size
Min.: 2 GB
Max.: 32 GB
Description
CPU boards with latest generation Intel® Processors, fanless, low power consumption and exceptional performance.
Manufactured in Aluminium.
Display
Format - 4:3
Brightness - 500 cd/m2
Ratio contrast - 1000:1
Angle vision - 176/176
LED Life Time - 50.000 h
System
Hard Drive - 60/120/240GB SSD. 500GB/1TB SATA.
Graphics - Intel® HD Graphics
Chipset - J1900 Onboard (SoC)
Input / Ouput
Serial Ports - -
Ethernet - 1 x Realtek Giga Ethernet
Video - 1 x VGA / 1 x HDMI
Audio - 1 x Audio output / 1 x Microphone
Expansión - 2 x Mini-PCIe / 1 x PCIex1
Mechanical
Dimensions - 265 x 212 x 50 mm
Weight - 2 kg
Panel cut - -
Optionals
Serial Ports - 2 x RS-232
Modem - 3G / LTE + GPS
Slot PCIe - To Be Consulted
Others - To Be Consulted
Protection / Environmental Conditions
°C Operation - 0º a 60º C
°C Storage - -10º a 70º C
Humidity (no condensation) - 0% - 95%
Power Supply
Input Voltage - 12Vdc (External power supply 110-220Vac/12Vdc)
Optional Input Voltage - 24Vdc
