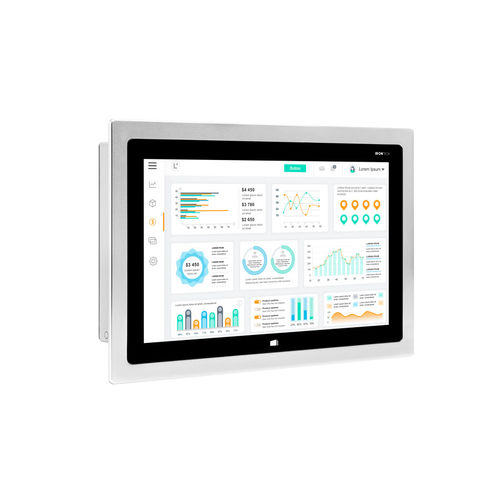

LED backlight panel PC IRTPPC121 series

PCAP capacitive touch screen5-wire resistive touch screen12.1"

CPU boards with latest generation Intel® Processors, fanless, low power consumption and exceptional performance. IP65 Front Bezel protection, available in Anodized Aluminum or Stainless Steel. Display Format - 16:9 Brightness - 400 cd/m2 Ratio contrast - 1000:1 Angle vision - 176/176 LED Life Time - 50.000 h System Hard Drive - 60/120/240GB SSD. 500GB/1TB SATA. Graphics - Intel® HD Graphics 500 Chipset - J3455 Onboard (SoC) Input / Ouput Serial Ports - - Ethernet - 2 x Intel® Giga Ethernet Audio - 1 x Audio output Expansión - 1 x Mini PCI Express Slot (Full-size) / 1 x M.2 SATA M-key 2242/2280 Mechanical Dimensions - 329 x 235 x 61 mm Weight - 2,9 kg Panel cut - 289 x 193 mm Optionals Modem - 3G / LTE + GPS WIFI Module - Wifi 2,4GHz / Wifi 2,4GHz i 5GHz + Bluetooth Slot PCIe - To Be Consulted Others - To Be Consulted Protection / Environmental Conditions °C Operation - 0º a 60º C TBC: -20º a 60º C (Atom) °C Storage - -10º a 70º C TBC: -20º a 70º (Atom) Humidity (no condensation) - 0% a 95% Power Supply Input Voltage - 9-36Vdc (External 110-220V/12Vdc)
