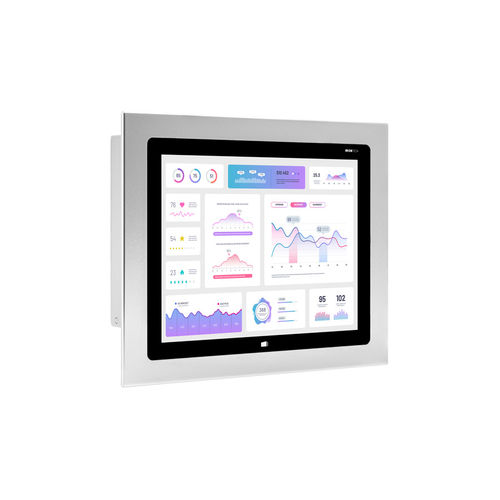

LED backlight panel PC IRTPPC104 series

PCAP capacitive touch screen5-wire resistive touch screen10.4"

CPU boards with latest generation Intel® Processors, fanless, low power consumption and exceptional performance. IP65 Front Bezel protection, available in Anodized Aluminum or Stainless Steel. Display Format - 4:3 Brightness - 1000 cd/m2 Ratio contrast - 1000:1 Angle vision - 176/176 LED Life Time - 50.000 h System Graphics - Intel® HD Graphics Chipset - J1900 Onboard (SoC) Input / Ouput Serial Ports - - Ethernet - 1 x Realtek Giga Ethernet Audio - 1 x Audio output / 1 x Microphone Expansión - 2 x Mini-PCIe / 1 x PCIex1 Mechanical Dimensions - 309 x 248 x 78 mm Weight - 3,2 kg Panel cut - 264 x 202 mm Optionals Serial Ports - 2 x RS-232 Modem - 3G / LTE + GPS Slot PCIe - To Be Consulted Others - To Be Consulted Protection / Environmental Conditions °C Operation - 0º a 60º C TBC: -20º a 60º C (Atom) °C Storage - -10º a 70º C TBC: -20º a 70º (Atom) Humidity (no condensation) - 0% a 95% Power Supply Input Voltage - 12Vdc (External power supply 110-220Vac/12Vdc) Optional Input Voltage - 24Vdc
