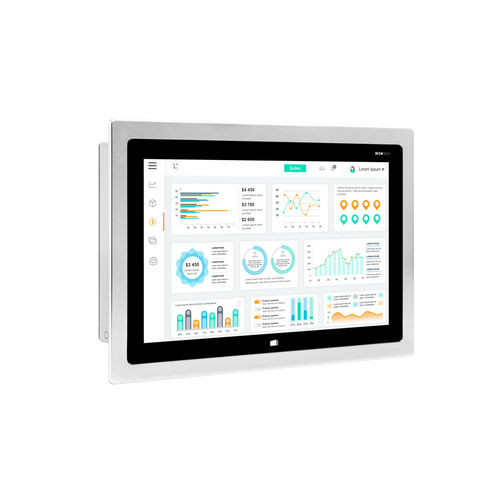

LED backlight panel PC IRTPPC156 series

PCAP capacitive touch screen5-wire resistive touch screen15.6"

CPU boards with latest generation Intel® Processors, fanless, low power consumption and exceptional performance. IP65 Front Bezel protection, available in Anodized Aluminum or Stainless Steel. Display Format - 16:9 Brightness - 450 cd/m2 Ratio contrast - 800:1 Angle vision - 160/160 LED Life Time - 50.000 h System Hard Drive - 60/120/240GB SSD. 500GB/1TB SATA. Graphics - Intel® HD Graphics 620 Input / Ouput Serial Ports - - Ethernet - 2 x Realtek Giga Ethernet Audio - 1 x Audio output / 1 x Microphone Expansión - 1 x Mini-PCIe / 1 x M.2(2242/2260) for SSD Mechanical Dimensions - 427 x 277 x 91 mm Weight - 6,8 kg Panel cut - 388 x 238 mm Optionals Serial Ports - 2 x RS-232 selectable header 5V-12V / 10 x RS-232/422/485 Modem - 3G / LTE + GPS WIFI Module - Wifi 2,4GHz / Wifi 2,4GHz i 5GHz + Bluetooth Slot PCIe - To Be Consulted Others - To Be Consulted Protection / Environmental Conditions °C Operation - 0º a 60º C TBC: -20º a 60º C (Atom) °C Storage - -10º a 70º C TBC: -20º a 70º (Atom) Humidity (no condensation) - 0% a 95% Power Supply Input Voltage - 12Vdc (External power supply 110-220Vac/12Vdc)
