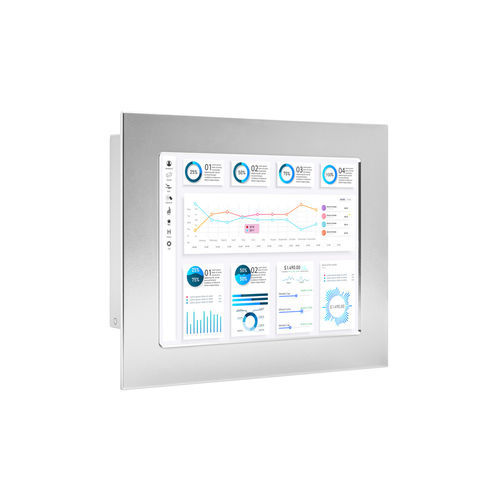

LED backlight monitor IRTMFB104JBJAA5-wire resistive touch screen10.4"1024 x 768
Add to favorites
Compare this product
Characteristics
- Technology
- 5-wire resistive touch screen, LED backlight
- Display size
- 10.4"
- Resolution
- 1024 x 768
- Mounting
- wall-mount
- Applications
- industrial, outdoor
- Other characteristics
- USB, VGA-DVI port, high-brightness, IP65
- Operating temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)
Description
Display
Format - 4:3
Brightness - 500 cd/m2
Ratio contrast - 1000:1
Angle vision - 176/176
LED Life Time - 50.000 h
System
CPU - -
Memory - -
Hard Drive - -
Graphics - -
Chipset - -
OS - -
Input / Ouput
Serial Ports - -
Ethernet - -
Audio - -
Expansión - -
Mechanical
Dimensions - 309 x 248 x 77,7 mm
Weight - 3,2 kg
Panel cut - 264 x 202 mm
Optionals
USB Ports - Optional
Serial Ports - -
Modem - -
WIFI Module - -
Slot PCIe - -
Others - -
Protection / Environmental Conditions
°C Storage - -10º a 70º C
Humidity (no condensation) - 0% - 95%
Power Supply
Input Voltage - 12Vdc (External power supply 110-220Vac/12Vdc)
Optional Input Voltage - 12-36Vdc
