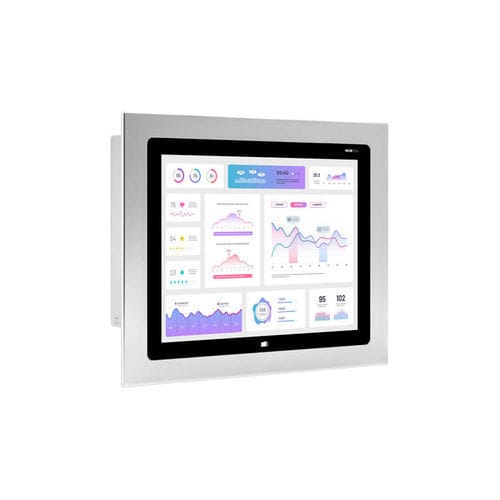

LED backlight panel PC IRTEXP series

PCAP capacitive touch screenmultitouch screen15.6"

CPU boards with latest generation Intel® Processors, fanless, low power consumption and exceptional performance. IP65 Front Bezel protection, available in Anodized Aluminum or Stainless Steel. Display Format - 4:3 Brightness - 300 cd/m2 Ratio contrast - 2000:1 Angle vision - 176/176 LED Life Time - 70.000 h System Hard Drive - 60/120/240GB SSD. 500GB/1TB SATA. Graphics - Intel® HD Graphics Chipset - E3940 SoC Processor (TDP 10W/9.5W) Input / Ouput Serial Ports - - Ethernet - 2 x Intel® Giga Ethernet Audio - 1 x Audio output Expansión - 1 x Mini-PCIe / 1 x M.2 M-key (2242) / 1 x M.2 B-key (3042) Mechanical Dimensions - 412 x 331 x 92 mm Weight - 5,8 kg Panel cut - 354 x 288 mm Optionals Serial Ports - 1 x RS-232 / 1 x RS-232/422/485 Modem - 3G / LTE + GPS WIFI Module - Wifi 2,4GHz / Wifi 2,4GHz i 5GHz + Bluetooth Slot PCIe - To Be Consulted Others - To Be Consulted Protection / Environmental Conditions °C Operation - 0º a 55º C °C Storage - 0º a 85º C Humidity (no condensation) - 0% a 95% Power Supply Input Voltage - 9-36Vdc (External 110-220V/12Vdc)
