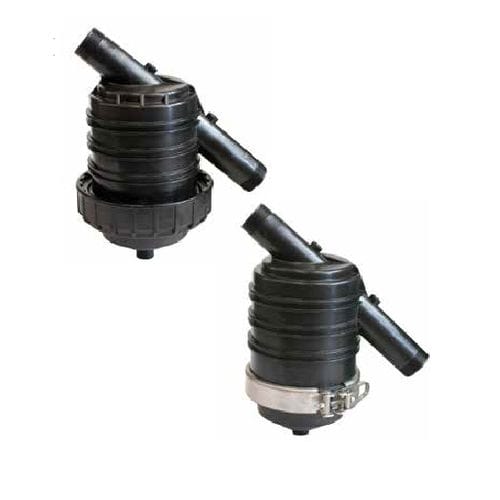

Cartridge filter housing YGG/YGF series
for waterhigh-performance

Cartridge filter housing - YGG/YGF series - Irritec S.r.l. - for water / high-performance
Cartridge filter housing - YGG/YGF series - Irritec S.r.l. - for water / high-performance
Add to favorites
Compare this product


Characteristics

Filter type
cartridge
Fluid
for water
Other characteristics
high-performance

Description

Applications Secondary filtration in systems for irrigation, safe filtration. The disk filter allows high efficiency and filtration precision. It can be installed in wells or outdoors thanks to the excellent UV ray resistance. Materials • Body: polypropylene • Cover: polypropylene • Closure elements: - polyamide ring nut - ring in stainless steel AISI 304 • Filtering element: - mesh in stainless steel AISI 304 with polypropylene structure; - polyester mesh with polypropylene structure - polypropylene disks. • Gaskets: NBR • Disks support: glass reinforced polyamide. Characteristics • Maximum working pressure: 8 bar at 20° . • Standard filtration grade: 120 mesh (filtration available: 50, 80, 150, 200 mesh) • Standard bypass: male threaded [BSP and NPT].
