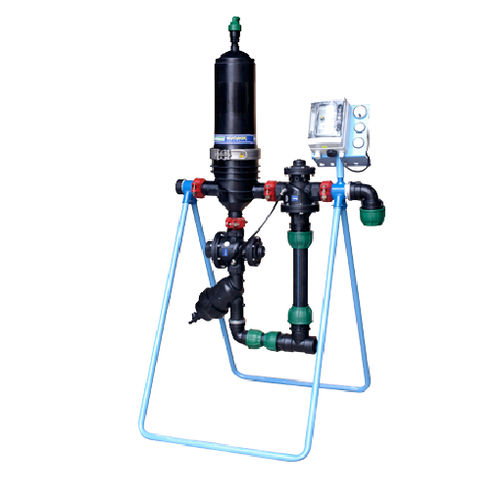

Hydraulic filter IFRSL201GBGUL

discplasticthreaded

Applications The RSL SINGLE FILTER disk filtering station is composed of a Rotodisk, a filter equipped with a particular mechanical and hydraulic system that allows its automatic backwashing. Assembled individually with two, threeway hydraulic valves, an auxiliary disk filter and a controller for automatic management of the wash cycles (timed and pressure differential). The RSL station is mainly used as primary filtration of water particularly weighted with suspended particles, or as secondary filtration downstream of the quartzite filters or sand separators. Materials • Filter: polyamide reinforced with fibre glass • Collectors: HDPE • Hydraulic valves: plastic or cast iron • Victaulic fittings: cast iron • Filtering element: polypropylene disks • Accessories: polypropylene Characteristics • Maximum working pressure: 10 bar at 20° . • Standard filtration grade: 120 mesh (filtration available: 30, 50, 80, 150, 200 mesh). • Threaded bypasses: victaulic (up to 4’’), flanged (over 4’’) • The filtering station is supplied with air discharge valves, fittings for backwash water discharge and an automation kit • Resists acids and fertilisers commonly used in agriculture.
