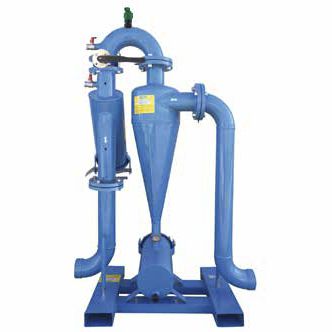

Water filter IFETS series

discwire meshsand

Applications ETS filtering stations were designed for anyone wishing to reduce large quantities of suspended solid particles, while at the same time reducing dimensions. The combination between sand separator and safety filter guarantees good finishing of the water. ETS stations are mostly used in agriculture. Materials • Body: in sanded metal treated with phosphate zinc and followed by an electrostatic application of a layer of polyester paint, minimum thickness 160 micron, with a protective and anti-corrosion function. • Safety filtering element: stainless steel AISI 304 with polyester mesh, stainless steel AISI 304 or high density polypropylene disks. • Gaskets: EPDM Characteristics • Maximum working pressure: 8 bar • Standard filtration grade: 120 mesh (filtration available: 80, 150, 200 mesh) • Types of connection: threaded, flanged, victaulic • The station is supplied with a bypass kit for fertigation with Ø3/4’’ bypasses
