XY positioning table Kreuztisch 10/20

motorized2-axisstandard

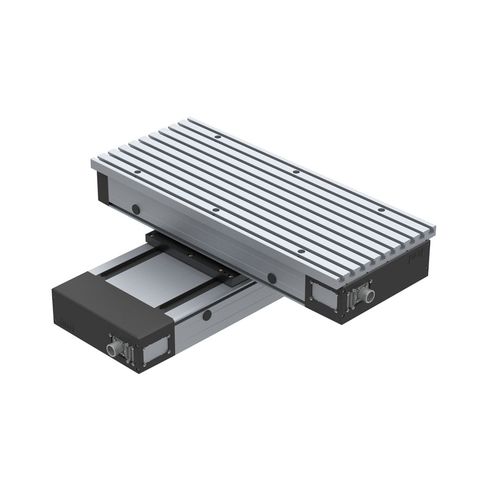

Two isel linear units LES 5 adjustable for no play with integrated servomotor Recirculating ball drive, pitch 10 mm Travel: X-axis: 210/310 mm Y-axis: 210/310 mm Options (Cross table 10/20): 5 mm spindle pitch Milled T-slot plate step motor Servo controller Other travel LINEAR CROSS TABLE 10/20 FIGURE The cross tables 10/20 consist of two linear units LES 5, which are interconnected at right angles. The individual axes are driven by servo motor with a recirculating ball drive of 10 mm pitch. To achieve very high load-bearing capabilities, each axis is fitted with four linear slots. In addition to this standard design, it is possible to combine all LES 5 linear units with each other by means of the crossbench connection plates. FEATURES Two isel linear units LES 5 adjustable for no play with integrated servomotor Recirculating ball drive, pitch 10 mm Travel: X-axis: 210/310 mm Y-axis: 210/310 mm OPTIONS: 5 mm spindle pitch Milled T-slot plate step motor Servo controller Other travel
