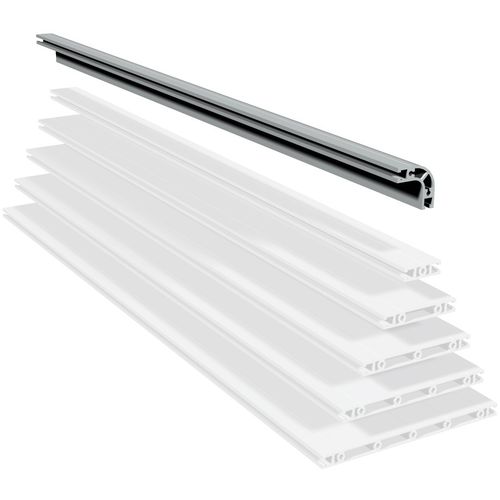

Aluminum profile Panel profiles PP 50 - PP 250

groovedframe

Panel profiles For fast and easy erection of frames, benches and racks Aluminium, naturally anodised Produced to DIN EN 12020-2 Easy, very strong under load Top edge particularly suitable as a load-bearing cladding, also takes very high loads The drilled holes and PS profile socket head screws of our profile linkages offer extremely rigid connections, resistant to tension, distortion and bending. Profile cutting to order Extensive range of accessories Features For fast and easy erection of frames, benches and racks Aluminium, naturally anodised Produced to DIN EN 12020-2 Easy, very strong under load Top edge particularly suitable as a load-bearing cladding, also takes very high loads The drilled holes and PS profile socket head screws of our profile linkages offer extremely rigid connections, resistant to tension, distortion and bending. Profile cutting to order Extensive range of accessories Length - up to 3 meters (special length upon request) Weight - approx. 1.7 kg/m Moment of inertia (lx) - 13.25 cm4 Moment of inertia (ly) - 13.25 cm4 Moment of resistance (Wx) - 4,39 cm3 Moment of resistance (Wy) - 4.39 cm3 Information - 2 cavity inserts Ø 5.5 mm for M6 screw
