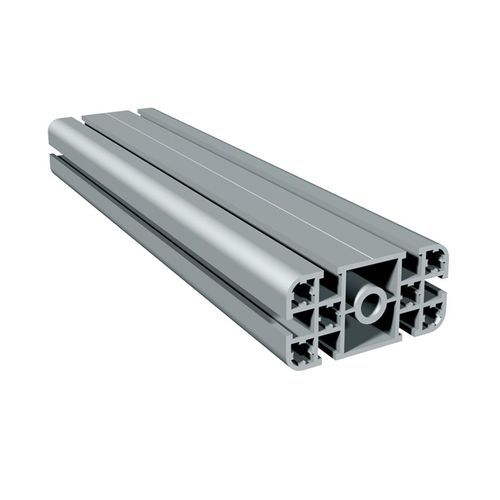

Aluminum profile Lightweight frame profiles PL 40 / PL 80

rectangulargroovedflat

For the fast and simple erection of frames, benches and racks Aluminium, naturally anodised Produced in accordance withDIN EN 12020-2 Light, compact & stable Suitable for very high loads Profile cutting upon request Characteristics For the fast and simple erection of frames, benches and racks Aluminium, naturally anodised Produced in accordance withDIN EN 12020-2 Light, compact & stable Suitable for very high loads The clamping elements and drilled holes of our clamped linkages produce very rigid connections, resistant to tension, distortion and bending between the profiles. Profile cutting upon request Extensive range of accessories Options: powder coatings in anthracite and light grey Length - up to 3 meters (special lengths upon request) Weight - approx. 2.9 kg/m Moment of inertia (lx) - 64.40 cm⁴ Moment of inertia (ly) - 16.36 cm⁴ Moment of resistance (Wx) - 16.10 cm³ Moment of resistance (Wy) - 8.18 cm³ Information - 6 T-key inserts for M6 sliding nuts 6 cavity inserts, Ø 8.5 mm for M10 Cavity insert, Ø 10.2 mm for M12
