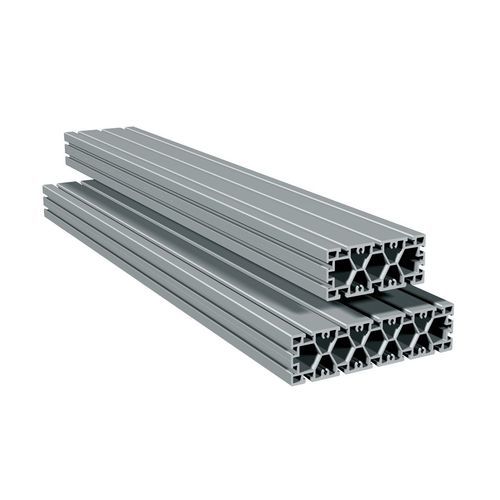

Aluminum profile Rectangular profiles type RE 65

rectangularflatframe

Universal precision, clamping and machining surface As a stabiliser for machine and subframe constructions Aluminium, naturally anodised Produced in accordance with DIN EN 12020-2 Light & very stable Profile cutting upon request Extensive range of accessories Characteristics Universal precision, clamping and machining surface As a stabiliser for machine and subframe constructions Aluminium, naturally anodised Produced in accordance with DIN EN 12020-2 Light & very stable Milled flat on both sides Numerous applications with the accessories are possible Profile cutting upon request Extensive range of accessories Length - up to 3 meters (special lengths upon request) Weight - 150 x 65 mm: approx. 7.7 kg/m 250 x 65 mm: approx. 12.4 kg/m Moment of inertia (lx) - 150 x 65 mm: 633.47 cm⁴ 250 x 65 mm: 2,658.48 cm⁴ Moment of inertia (ly) - 150 x 65 mm: 148.87 cm⁴ 250 x 65 mm: 243.85 cm⁴ Moment of resistance (Wx) - 150 x 65 mm: 84.46 cm³ 250 x 65 mm: 212.68 cm³ Moment of resistance (Wy) - 150 x 65 mm: 45.83 cm³ 250 x 65 mm: 75.03 cm³ Information - various cavities and T-key inserts for sliding nuts or M6 tapped strips as well as frontal inserts for M6 screws
