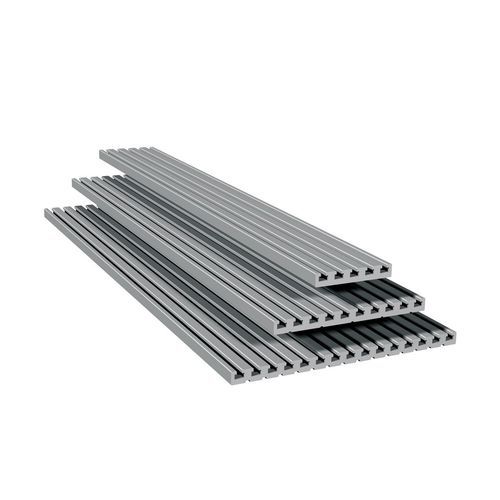

Aluminum profile PT 25

anodized aluminumflatT-slot

T-slots one-sided in 25 mm raster For use with any machine Thick walled, distortion-free and extremely form-retaining Profile cutting to order! Features Universal precision, clamping and machining surface Produced in accordance withDIN EN 12020-2 Milled flat on both sides For use with any machine Thick walled, distortion-free and extremely form-retaining Profile cutting to order Extensive range of accessories Option: Drainage channel for small quantities of liquid Length - up to 3 meters (special lengths upon request) Weight - 125 x 20 mm: approx. 4.8 kg/m 250 x 20 mm: approx. 9.6 kg/m 375 x 20 mm: approx. 13.7 kg/m Moment of inertia (lx) - 125 x 20 mm: 243.36 cm4 250 x 20 mm: 1,848.57 cm4 375 x 20 mm: 5,996.01 cm4 Moment of inertia (ly) - 125 x 20 mm: 6.46 cm4 250 x 20 mm: 12.77 cm4 375 x 20 mm: 17.90 cm4 Moment of resistance (Wx) - 125 x 20 mm: 38.94 cm3 250 x 20 mm: 147.88 cm3 375 x 20 mm: 319.79 cm3 Moment of resistance (Wy) - 125 x 20 mm: 6.46 cm3 250 x 20 mm: 12.77 cm3 375 x 20 mm: 17.90 cm3 Information - T-slots one-sided in 25 mm raster
