Steel micro-machining machine iMG 1010

for aluminumfor plasticsfor medical applications

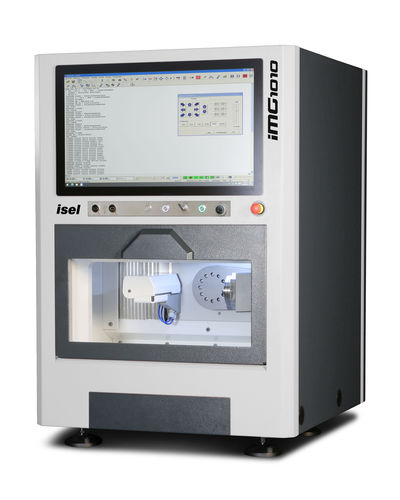

SERIES IMG 1010 FOR MICROMACHINING Small CNC Machine The iMG 1010 offers a compact solution for machining workpieces up to 100x100x100 mm. The machine enables a wide range of materials such as aluminum, CoCr or titanium to be machined precisely. The arrangement of the axes enables almost all positions on the workpiece to be reached without the need for reloading. The special mounting of the Y-axis is to be emphasized, which guarantees high stability as well as enormous vibration damping due to its installation position. The selection of workpiece clamping devices and holders in combination with the zero-point clamping system makes the machine a versatile machining center. The design allows wet/dry machining without time-consuming changeover. The basic design allows the machine to be extended by an optional handling system, which can enter the machine room from the right, left or from above. This allows workpieces to be changed automatically. PRECISION PARTS FOR: medical technology Precision Mechanics Micromachining Mould and prototype construction Dental Technology Jewelry Industry FEATURES 5-axis operation as standard 15-fold tool changer low vibration high accuracy through precision guides large operating panel with 24" touch operation FIELDS OF APPLICATION The machine can be used flexibly for a wide variety of materials. Metals and plastics can be processed wet and dry without changeover. The zero-point clamping system facilitates the handling of the workpieces. POPULAR MATERIALS: Steel Titanium CoCr Aluminum / light metals OPTIONS Machine base automatic placement system various clamping devices 3D measuring probes
