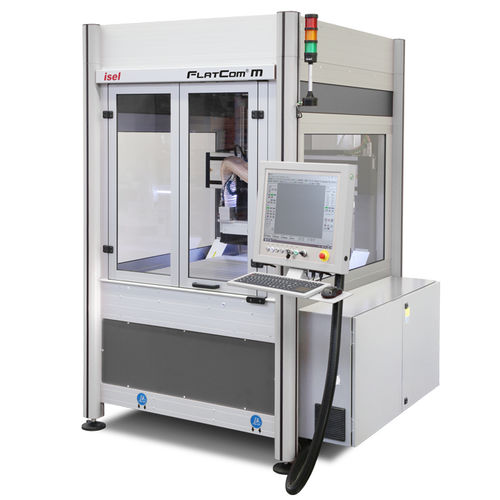

3-axis CNC milling machine FLATCOM® M series

verticalfor aluminumfor wood

The FlatCom ® M series is used for milling as well as for dispensing applications. All linear axes run on ground steel shafts equipped with linear ball bearings. Ball screws adjusted without clearance are used as drives. Powerful brushless servomotors in service-friendly drive modules drive the linear axes. Thanks to the own servocontrol by isel, equipped with track function (look ahead), a solution can be found for a wide range of customer requirements. The versatile one • for milling, dispensing, measuring, and testing • unbeatable price-performance ratio • entry into the rack machine • available in four sizes Features • closed hood • portal passage of 250mm (optional 350mm) • prepared for digital and analog I/O modules • powerful isel control with maintenance-free servomotors • peliable LES units with steel ball screws installed as drives • easy to use thanks to the height-adjustable CNC panel • network-compatible control PC with WINDOWS • sliding/folding door • clamping of the workpieces by means of a T-slot plate Options • iSA milling spindles and water-cooled HF milling spindles • round and linear tool changing stations • cooling spray device • cold air cooling Cool-Min • automatic tool length measurement • mill breakage control • electronic handwheel • pneumatic sliding door • rotation units • a maximum of 6 interpolating axes + 6 handling axes • safety light curtain Typical materials: • light and non-ferrous metals • foam and milled plastics • wood • plexiglass • and many more Application areas: • model and mold making • advertising technology • plate processing • orthopaedic technology • dispensing applications • measurement and testing procedures
