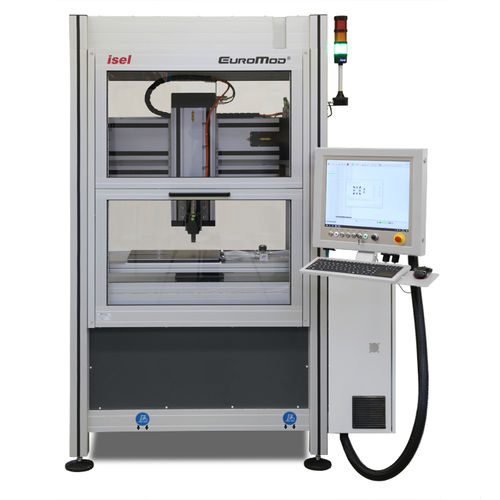

4-axis CNC milling machine

verticalfor woodfor non-ferrous metals

Ready-to-connect, compact CNC milling machine with servo motor drive The EuroMod CNC milling machine is a ready-to-connect CNC system with high operating comfort for a variety of tasks and applications. The mechanical basis is formed by stable, low-vibration mechanical components made of aluminium-steel joints. The backlash-free ball screws used in the linear axes ensure high accuracy. During the development of the EuroMod CNC milling machine, special emphasis was placed on a small footprint. The servo motors used are optimally matched to the mechanics, the power electronics and the control system. The entire electronics of the EuroMod CNC milling machine is housed in a switch cabinet, operation is via iOP-19, CNC operating units. BEST SUITED FOR: Multi-shift operation Processing of light metals, wood, plastic and foam materials as well as Plexiglas superstructure Portal: fixed, table: movable FOR EDITING: Aluminium / light metals milled plastics wood foams plexiglass ATTRIBUTES: Portal passage: 365 mm backlash-free adjusted steel KG drives with steel linear guides maintenance-free servomotors Spindle motors iSA 500 / 750 / 1500 / 1500L and iSA 900 / 1500WL / 2200 best suited for multi-shift operation swivelling control panel iOP-19-TFT Control PC iPC 25 incl. CAN PCI card Win 10 / 64 bit network connection EuroMod® CNC machines are available as compact units in 3 standard sizes with traverse paths from..: X = 610 / 910 mm, Y = 300 / 470 / 650 mm, Z = 300 mm Z-Opening = 365 mm
