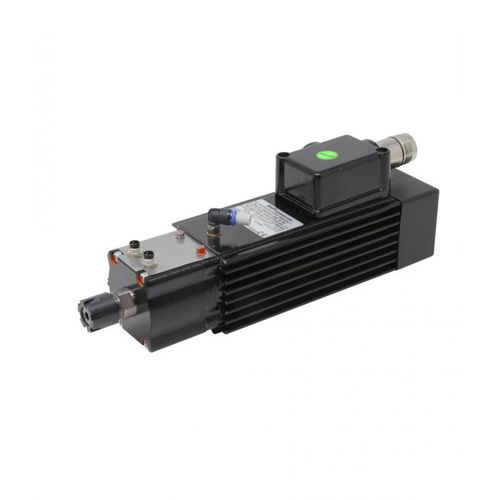

Spindle motor iSA 750

ACasynchronous220 V

FEATURES • - robust 2-pole AC motor (asynchronous motor) • - square shape • - Protection class IP54, insulation class F • - M23 plug connection • - A side: aluminium extrusion / B side: cast iron end shield • - motor shaft to take ER 16 collets • - incl. ER 16 collet, Ø 6 mm • - clamping range Ø 1 mm – Ø 10 mm • - intrinsic ventilation B-side • - two precision bearings • - controlled by frequency converter • - fitting holes Ø 5 mm (±0.1) for easy spindle replacement OPTIONS • - Sensory module • - CoolMin® (internal and external) • - frequency converter SKC 750 • - suction device • - various collets ER 16 • - mounting plates • - connection cable in different lengths • - sealing air connection
